Patient communication and case documentation are an integral part of your everyday workflow. With the SiroCam UAF Plus, you can acheive all of this at just the touch of a button. Providing clear case visualization can help your patients to understand and accept your diagnosis and recommended treatment plan, improving overall communication and patient experience.
The perfect addition to your practice workflow.
With easy-to-use autofocus and 720p HD resolution, you get exactly the images you need for clear case presentation, patient education and documentation purposes.
Designed for patient comfort and an ergonomically friendly user experience, this slim, lightweight intraoral camera is an effective addition to any practice workflow.
Featuring a straightforward one-button autofocus, capturing a high quality image or video has never been easier.
In combination with Sidexis 4.2 and higher or any imaging software that supports TWAIN-capable devices, you have the ability to store these images for retrieval at a later time.

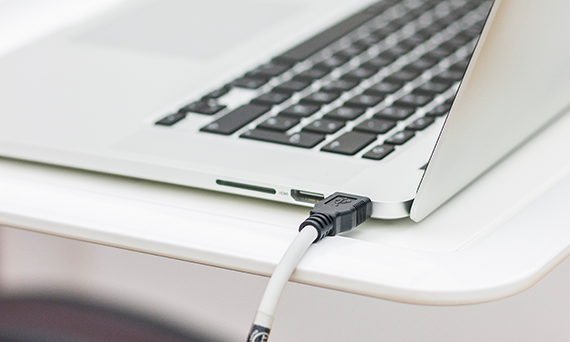

Featuring flexible standardized USB connectivity (USB 2.0 or 3.0) to your computers and laptops and a cable length of 2.4 m, this intraoral camera provides true portability between treatment rooms and the freedom to work completely chairside without being tethered to a single work station.

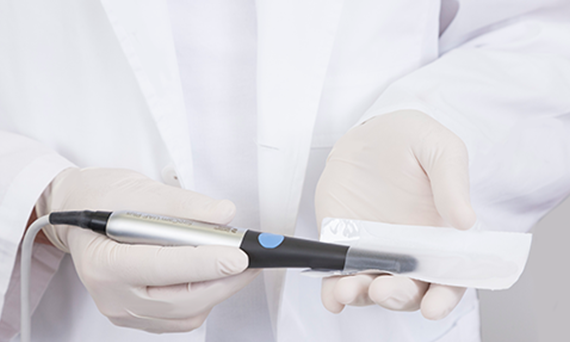

With an easy to wipe reinforced plastic and glass fiber surface, disinfection and preparation in between patients can be truly efficient. In combination with hygienic single-use sheaths, you can save valuable time in your workflow and provide your patients with the highest quality of care.
It is designed to improve patient communication without the need for additional diagnostic tools.
The SiroCam UAF Plus is technically identical to the SiroCam AF+. The two cameras differ from each other in their connections. The SiroCam UAF Plus is a standalone version that can be connected directly to a PC or laptop via a USB connection. The SiroCam AF+ is integrated into the treatment unit.
The SiroCam UAF Plus is a standalone intraoral camera that does not allow connectability with your treatment center unless the center has a USB connection. We do offer an integrated camera that connects directly in with your Dentsply Sirona Intego and Teneo treatment center units. You can find additional information on this camera option at https://www.dentsplysirona.com/en/explore/treatment-centers.html
Yes, the camera can also be used with third party software via a TWAIN interface (not available in DE and AT).
The SiroCam UAF Plus works with Sidexis version 4.2 or higher - Sidexis 4.3 is included in the scope of delivery.
| Model | SiroCam UAF Plus |
|---|---|
| Light | LED |
| Cable Connection | USB 2.0 (USB 3.0 compatible) |
Sensor Technology |
1/4 inch CMOS |
Camera Image Resolution (pixels) |
1296 x 796 |
Video Resolution (pixels) |
824 x 514 with 20 FPS |
| Magnification Max | x250 |
| Lens | Autofocus |
| Power Supply | USB (5V) |
| Activation | Single-button operation |
| Multi-Station Use | Plug & Play |
| Camera Weight | 210g with cable |
| Camera Length | 195mm |
| Cable Length | 2.40m |
| Device Driver | No special drivers needed |
