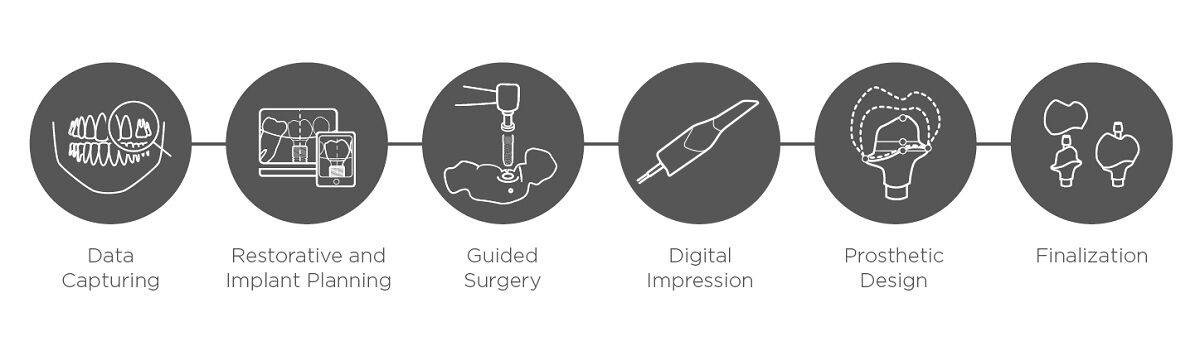

From data capturing, planning and guided surgery to the final restorative solution, with the digital implant workflow from Dentsply Sirona you have all the support you need to save time, grow your business and provide your patients with the best possible care. At each step of the workflow, Dentsply Sirona gives you the possibility to freely choose what fits your needs best. For better, safer and faster implant treatment.
It is now, for the first time, possible to mill guides for Dentsply Sironas implant systems Ankylos, AstraTech and XiVE directly in your clinic. For fully guided surgery and implant placement.

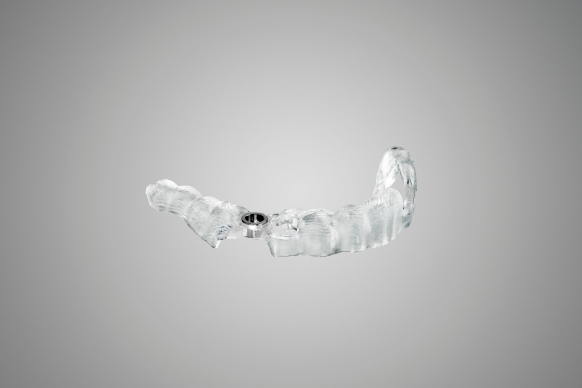

Integrated implantology with CEREC Guide 2 enables you to surgically plan implants and implement the plan precisely using a surgical guide in a fast and cost-effective way.

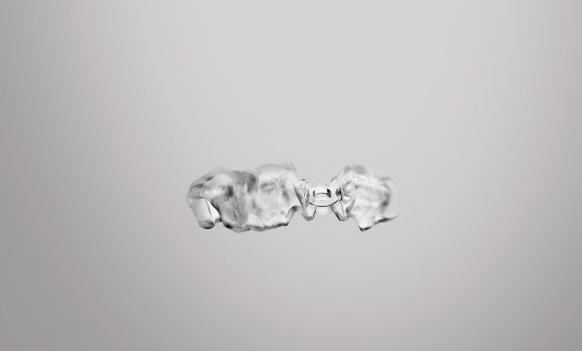

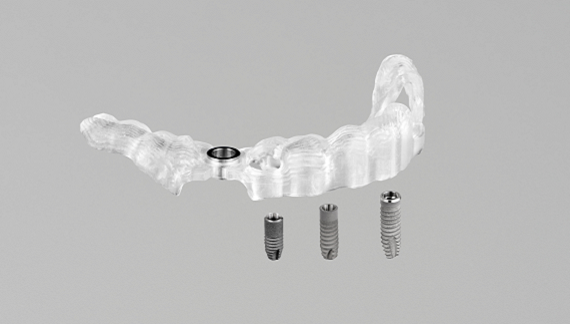

CEREC Guide 3 enables you to place the premium implant systems Ankylos, Astra Tech Implant System EV and Xive, from Dentsply Sirona Implants fully guided.

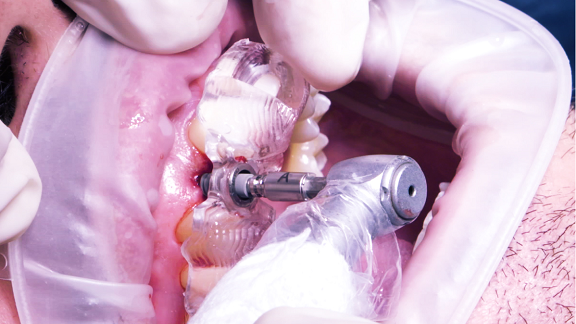

This means all surgical steps from soft-tissue punch to implant insertion, are performed with the guide in place.
Thereby, CEREC Guide 3 can be fast and easily produced in your practice within less than an hour, and at a very low cost.
The CEREC Guide 3 workflow
CEREC Guide 3 Workflow video
Further information on CEREC Guide 3
Implant systems that are compatible with CEREC Guide 3
Ankylos
Astra Tech Implant System EV
Xive
Optical Impression
CEREC AC Omnicam with CEREC SW 4.3.1 or higher (only for optical impression and prosthetic design; guide design requires CEREC SW 4.6.1) and OPEN GALILEOS Implant License
inEos X5 with inLab SW 15.0 or higher (only for optical impression and prosthetic design; guide design requires CEREC SW 4.6.1)
CBCT + Implant Planning
GALILEOS or ORTHOPHOS XG/SL 3D
Sidexis XG or Sidexis 4
Galaxis 1.9.2
GALILEOS Implant V1.9.2 incl. license dongle
NEW: Galileos Implant Data Base Version 1.9.6679.26375 vom 17.04.2018
Guide Design and Manufacturing
CEREC SW 4.6.1 with OPEN GALILEOS Implant License
CEREC MC X or CEREC MC XL (milling)
Please note:
Design and manufacturing of CEREC Guide 3 is not yet possible with inLab
Guide design cannot be exported as STL file

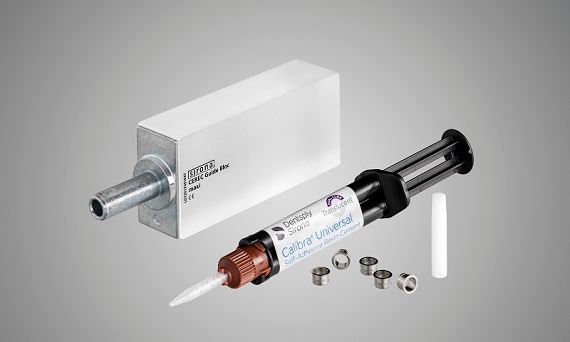

The following consumables are needed for the production of CEREC Guide 3:

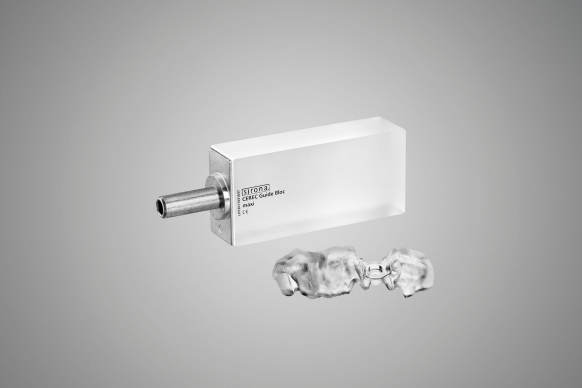

CEREC Guide Bloc maxi (for CEREC MC XL) or medi (for CEREC MC X)
Finisher 10 and Shaper 25 RZ
Guide Sleeve for the respective implant system
Calibra Universal Self Adhesive Resin Cement
CEREC Guide 3 and Dentsply Sirona Digital Implant Workflow

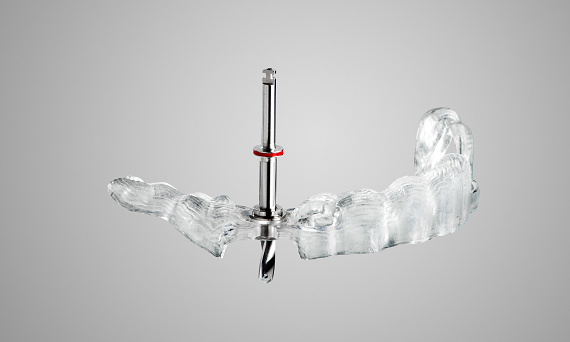

You are interested in guided surgery with CEREC, but are using a different major implant system? CEREC Guide 2 can be produced fast and inexpensive within your practice using Galileos Implant SW, CEREC SW and a CEREC milling unit.
Implant systems that are compatible with CEREC Guide 2:
Camlog® Guide System (for Camlog Scew-Line and Conelog Implants, not for 3.3 mm implants)
Optical Impression
CEREC AC Omnicam, Bluecam or Apollo DI with CEREC SW 4.3.1 or higher and open GALILEOS Implant license (only for optical impression and prosthetic design; full workflow, including milling, with CEREC SW 4.4 or higher)
inEos X5 with inLab SW 4.3 or higher and open GALLEOS Implant licence (only dor optical impression and prosthetic design; full workflow, including milling, with inLab SW 15.0 basic + implantology module)
CBCT + Implant Planning
GALILEOS or ORTHOPHOS XG/SL 3D
Sidexis XG or Sidexis 4
Galaxis 1.9.2
GALILEOS Implant V 1.9.2
Manufacturing
CEREC MC X
CEREC MC XL
CEREC MC XL Premium Package
inLab MC X5
Please note: Units require the ability to mill (not grind).
CEREC Guide Blocs medi (CEREC MC X), CEREC Guide Blocs maxi (CEREC MC XL)

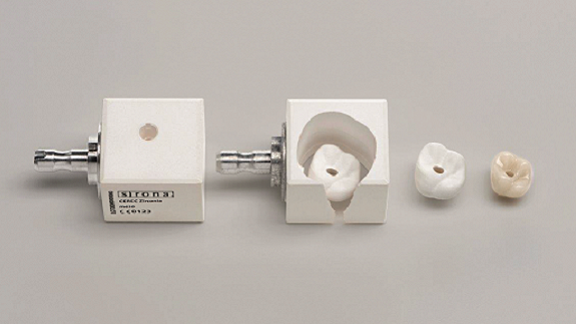

For screw-retained zirconia crowns in a single visit
Fully anatomical zirconia guarantees high strength without the risk of chipping
Kind to the gingiva thanks to the highest degree of biocompatibility and extraoral adhesion – thereby avoiding irritation or even inflammation of the mucous membrane
Precise fit and correct occlusion due to enlarged milling and subsequent dense sintering

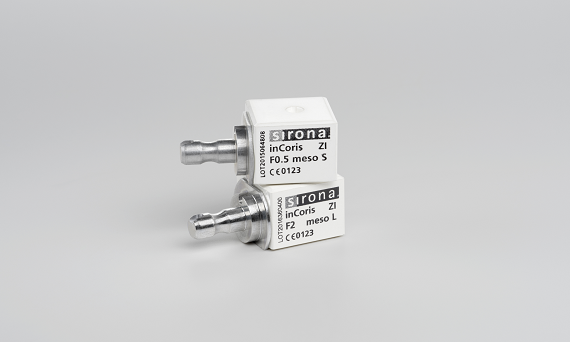

inCoris ZI meso
For customized zirconia abutments in a single visit
Improved apposition on the gingiva
Veneering with individual crown made of e.g. Celtra Duo or CEREC Blocs C PC
Fits on all TiBase

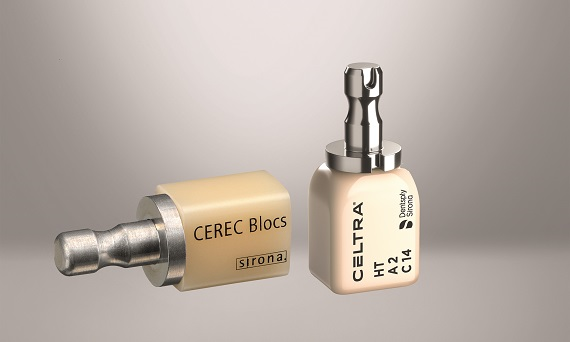

Celtra Duo and CEREC Blocs C PC
Perfect solutions for implant based crowns
Proven high strength regardless of processing pathway
Lifelike esthetics
Excellent shade matchingPlease define text

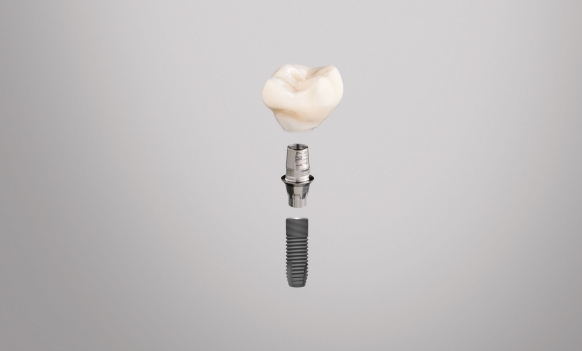

CEREC TiBase
CEREC TiBase - the perfect connection
Basis for two-part customized abutments
Available for different implant systems and diameters
Provided in a set complete with an abutment screw

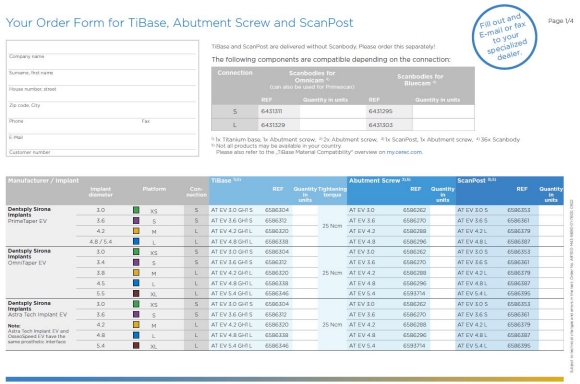

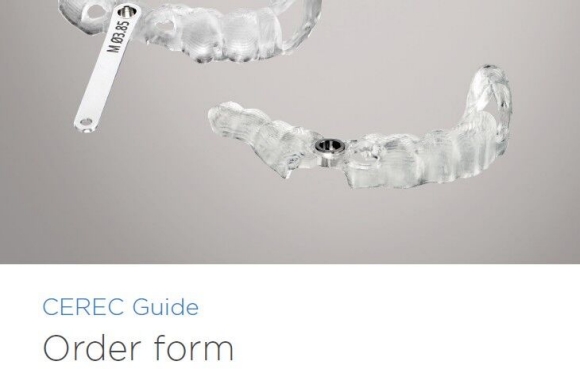

Order forms for materials, TiBase and accessories
Order form for CEREC Zirconia and CEREC Zirconia meso Blocs and Consumables
Only Implant sizes, of which a sleeve of the guided system is available, can be chosen. This is indicated by the sleeve symbols.
For choosing AstraTech Implant System EV, select AstraTech EV Guided Surgery in the 'Current plan's properties' menu.
For XiVE and Ankylos, select DENTSPLY Friadent ExpertEase.
No, the D1/D2 value is fixed and cannot be changed for guide sleeve of CEREC Guide 3.
Yes. The implant planning is done with guided sleeve system. Please make sure that a minimum distance of 0,5 mm is given between the outer sleeve and the neighboring teeth to ennsure stable sleeve support for CEREC Guide 3.
No, the export option is not available yet.
The sleeve must be changed to CEREC Guide Drill Keys (CEREC Guide 2) in order to activate export.
Then, change D1 value to an arbitrary number (e.g. 0,1 mm) to enable export options.
Please note: This is only a workaround and will be disregarded by the CEREC Software for CEREC Guide 3.
Import planning data (CMG.DXD) into CEREC 4.6.1. to design CEREC Guide 3 (drag & drop).
CEREC Guide 3 is automatically detected and sleeve is shown with guide support. Minimum material of 0,5 mm must be given for sleeve support. Otherwise, a user notification is shown and user must update implant planning and must import planning results again.
Frequently asked questions on CEREC Zirconia meso
No. CEREC Zirconia meso cannot be used for classical meso abutments. Instead, we recommend using inCoris ZI meso. However, CEREC Zirconia meso can be reduced and veneered for esthetic anterior solutions.

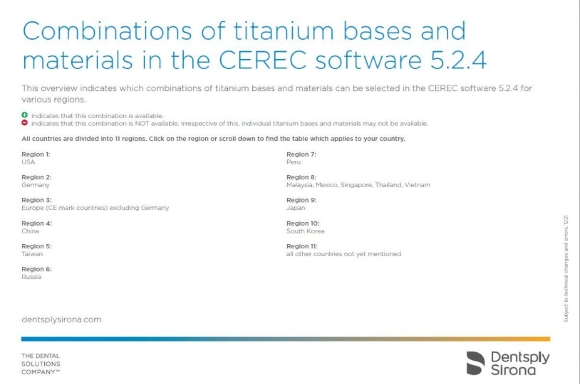

All TiBase sold by Dentsply Sirona are selectable in the software and can thus be used with the block. Titanium bases sold directly by the implant manufacturer such as Camlog, M.I.S and Straumann can not be used with CEREC Zirconia meso at the moment, but the integration is in process. Please see the overview for your respective country under the point "Appropriate implant systems for CEREC Zirconia meso".
Yes, it is planned to additionally offer a bleach shade, which can then be dyed with inCoris TZI Coloring Liquids in all 16 colors.
We recommend sealing the screw channel using the ceramic composite Ceram.X universal duo according to the manufacturer’s instructions. You can find a color recommendation per block shade in the manual for CEREC Zirconia meso.
Yes, it is possible to reduce the abutment crown in the software and to veneer it with a suitable veneering ceramic according to the WAK value. Cercon® Ceram Kiss is recommended.
Yes, the products CEREC SpeedGlaze and the Celtra Universal Stains & Glaze are suitable for staining and glazing.
Your question was not answered?
Our customer service center will be pleased to assist you. In order to do so, please fill in our contact form.
