Improved scan performance for Primescan
- Faster scanning possible without interruptions
- Improved scan stability with varying scan speed
- Reduced artefacts caused by specular reflections e.g. gold or amalgam
Direct communication with your laboratory
The Connect software and the Connect Case Center simplify the cooperation between you and your dental laboratory. Both sides communicate directly through the Connect Case Center. The data model is transferred within a few minutes and gives the laboratory an exact picture of the case.
This allows your dental technician to look at the case almost simultaneously with the practice. Thus, a first consultation with the laboratory can already be done while the patient is still in the treatment room.
Overview of the benefits
Primescan is first intraoral scanner to be validated for Atlantis suprastructures
Improved scan stability with varying scan speed with Primescan
Edentulous scan for digital dentures
Reduced artefacts caused by specular reflections
New indication "bridges on implants"
Export model data for 3D printing
New possibilities for patient communication
View model directly without selecting a restoration
Compatible with OraCheck 5
New indication "bridge on implants"

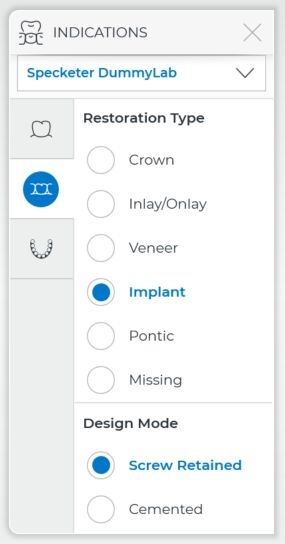

Select the restoration type “implants” under the section “Bridge” in the administration phase.
- Bridges can be built on the complete jaw: “all on 4”, “all on 6”
- Bridges on implants can be configured by choosing an implant system on at least two teeth
- Choose pontic for the missing teeth in between

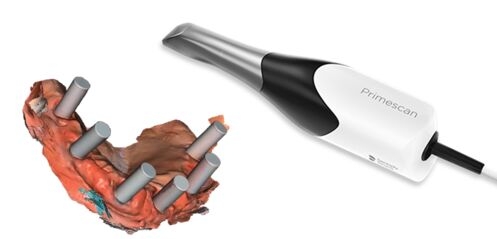

Primescan validated for Atlantis® suprastructures
Full digital workflow for Atlantis® suprastructures:
Primescan is the first intraoral scanner worldwide that has been validated for Atlantis® suprastructures thanks to its high level of accuracy:
- Indications: Large bridges and bars on implants (all on 4, all on 6)
- Integration of IO FLO-S into implant database allowing larger bridges / bars for designing in inLab SW (Fully integrated in the seamless workflow from inLab CAD SW 22.0), exocad, 3Shape and others

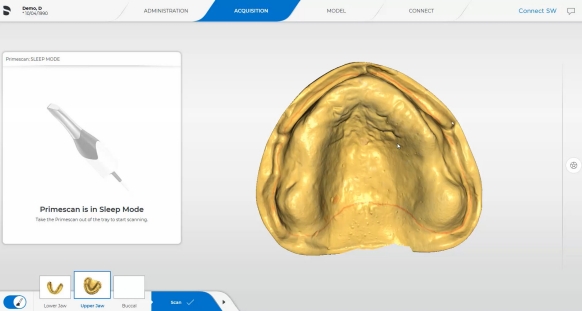

Edentulous scan for digital dentures
Saving one patient visit:
- Primary impression can be replaced by a digital impression with Primescan
- This forms the basis for individual impression tray and will save one patient visit for dentists able to print individual impression trays at the dental office

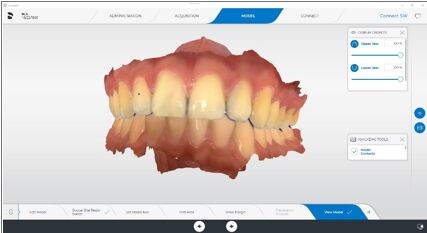

New optional Step – View Model
Improved patient communication:
With this option you can start scanning right away and directly switch to the Model view without selecting a restoration type in the Admin phase.
- Step can be used for patient communication
- Models, contacts and articulator are displayed
Export model data for 3D printing
The export of scan data in stl format including a model base enables you to print immediately without the use of additional software to base the 3D model data.
Connect SW 5.1 and Performance Upgrade for Omnicam

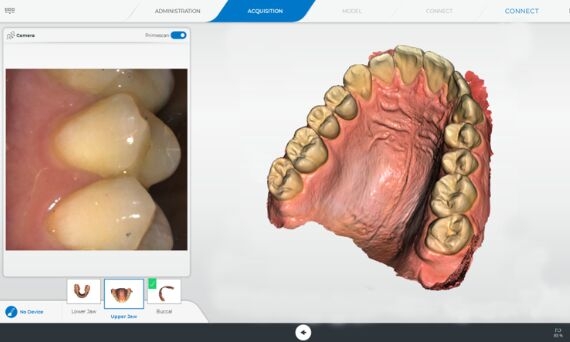

Improved scan quality
Scan quality has been further improved for Primescan as well as for Omnicam.
Additional indications

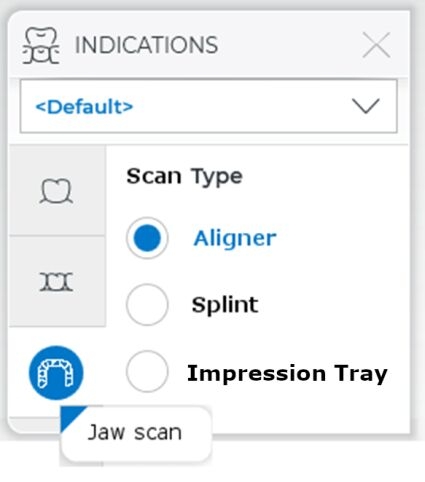

With Connect Software 5.1, you can select Aligners, Splints and individual impression trays from the Indications choice box.
Performance Upgrade for Omnicam
- Improved scan accuracy with Omnicam (Study Ender et al.)
- Artificial intelligence
- Improved calculation time
- Automatic artifact removal
- STL files can be exported.
The new Dentsply Sirona Software Generation 5 runs on Windows 10. In order to benefit from Software Generation 5, a hardware performance upgrade might be necessary. Depending on the hardware generation, different Performance Upgrades are available.
Please check which Performance Upgrade you need by using our Upgrade Advisor.
Upgrade Advisor
Upgrade Advisor Software Generation 5 74 MB
Please use this tool to check the hardware status of your Acquisition Center.
Connect Software Downloads
Here, you can download the current Connect Software. This version supports Primescan AC, CEREC Primescan AC, Omnicam AC and CEREC Omnicam AC (Windows 10). Due to different approval and registration times, not all products are immediately available in all countries.
The new Primescan firmware is included in this download and will be automatically updated.
Connect SW 5.2.4 2 GB
Connect SW 5.2.4 Update
Connect SW 5.2.4 Update Description
Update description for Connect SW 5.2.4
Connect SW 5.2.3 2 GB
Connect SW 5.2.3 Update
Update Description Connect SW 5.2.3 159 kB
Connect SW 5.2.2 2 GB
Connect Software 5.2.2 Update
Connect SW 5.2 2 GB
Connect Software 5.2 Upgrade
Connect SW 5.2 Upgrade Description 186 kB
Upgrade description for Connect SW 5.2
Connect Case Center Inbox Setup 1.2 379 MB
Here you can download the Connect Case Center Inbox. Important notice.: To activate the Inbox, the latest version of the license manager is required. This version gets automatically installed with the installation of the Inbox itself.
Update Description / Updatebeschreibung Connect Case Center Inbox 1.2 159 kB
Connect Case Center Inbox Setup 1.1.7 410 MB
Here you can download the Connect Case Center Inbox. Important notice.: To activate the Inbox, the latest version of the license manager is required. This version gets automatically installed with the installation of the Inbox itself.
Update Description/Updatebeschreibung Connect Case Center Inbox 1.1.7 113 kB
